Commercial Door Closer Adjustments: Ensuring Safety and Energy Efficiency

Commercial Door Closer Adjustment: Practical Guide for Smooth, Safe Commercial Doors

A properly adjusted commercial door closer keeps your building quiet, secure, and compliant. Whether you manage an office, retail space, or school, knowing how to fine-tune your door closer can save money, prevent damage, and keep people safe. This guide from Get a Reno walks you through every step, from identifying the right adjustment screw to troubleshooting stubborn problems.

Commercial Door Closer Adjustment: Quick Answers First

If your commercial door is slamming, the fix is usually a simple turn of an adjustment screw. Most surface-mounted commercial door closers on offices, shops, and schools use hydraulic valves labeled "S" (sweep or closing speed), "L" (latching speed), and often "BC" (backcheck). Commercial door closers have hydraulic regulation valves labeled S, L, and BC, and some models add a "D" for delayed action.

Here is the core rule of thumb: turning adjustment screws clockwise slows the door by adding resistance, while turning them counterclockwise speeds it up. Always adjust in tiny steps, about 1/8 to 1/4 turn at a time, and test the door after each adjustment to ensure it closes smoothly and securely latches.

A good door closer adjustment looks like this in practice: the door opens easily, starts closing at a controlled pace, resists being thrown open past about 75°, and takes roughly 5 to 7 seconds from a 90-degree open position to close and latch firmly without a slam. A non-delayed door closer should fully close in 7 to 8 seconds.

Get a Reno recommends stopping and calling a professional if you find oil on the closer body or cover, if the closer arm is visibly loose or bent, or if the door still will not latch properly after minor adjustments. Before you start, use the appropriate tool (the right screwdriver or allen wrench), adjust one screw at a time, test after each change, and always prioritize fire safety and code compliance for any commercial door. The rest of this article from Get a Reno walks step-by-step through tools, safety, identifying each adjustment, and troubleshooting.

Understanding Commercial Door Closers and Why Adjustment Matters

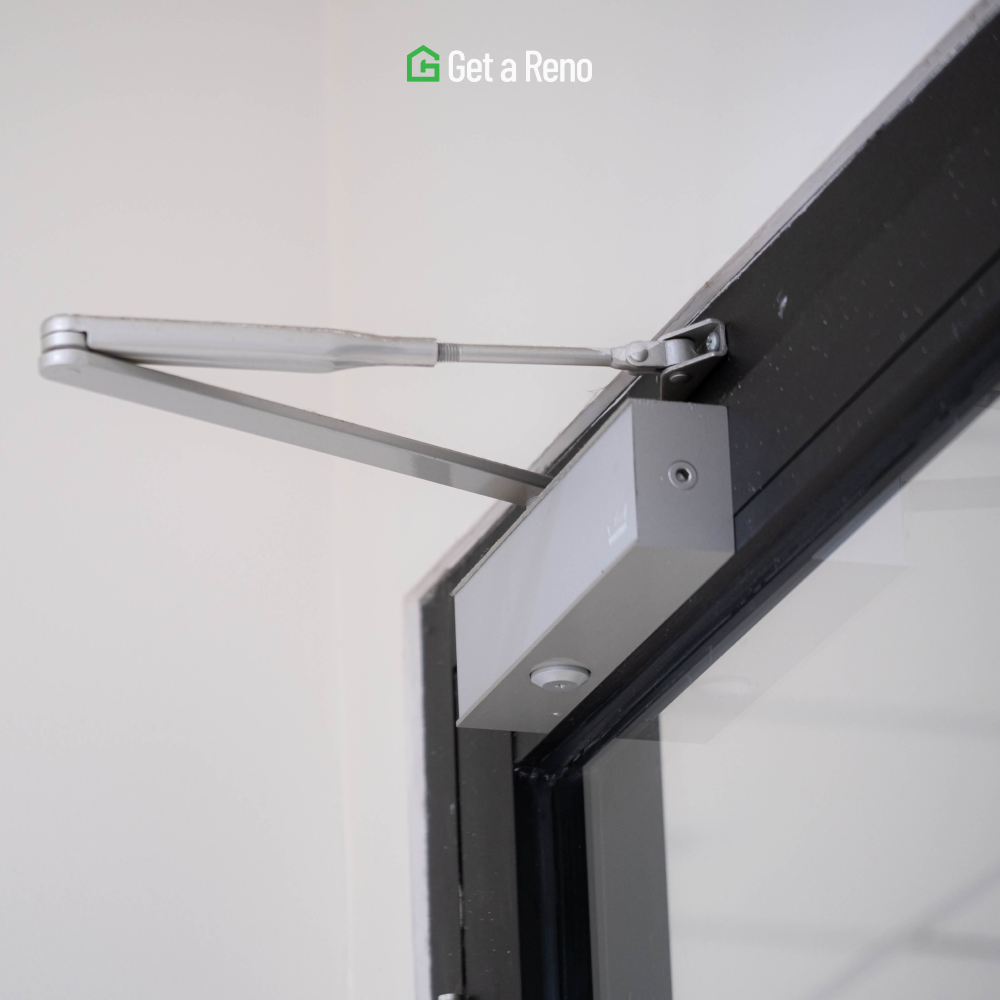

A commercial door closer is a mechanical and hydraulic device mounted at the top of a door that automatically closes it after someone walks through. You will find them on office corridors, retail entrances, schools, healthcare facilities, and warehouse fire doors, essentially anywhere a door needs to close the door reliably every single time.

The core components are straightforward: the closer body houses a spring and hydraulic fluid, the closer arm transmits motion between the body and the door frame, and small hydraulic valves control closing speed, latching speed, backcheck, and sometimes delayed action. When someone opens a door, spring tension builds and hydraulic fluid moves through internal valves. When released, the spring pushes the door closed while the fluid regulates how fast it moves, preventing slamming.

There is a meaningful difference between a light interior door closer and heavy-duty commercial door closers used on exterior or fire-rated heavy doors. The latter are more sensitive to improper closer adjustment because they must balance closing force with accessibility and code requirements.

Why does door closer adjustment matter? Properly adjusting a commercial door closer requires small, incremental changes, but those changes deliver real outcomes: reduced slamming, fewer complaints, less damage to frames and hardware, improved security when the door latches fully, and longer equipment life. Regular maintenance prevents costly repairs and ensures door functionality across seasons and changing conditions. Get a Reno positions itself as a practical resource for property managers who want a clear, non-technical understanding before touching any adjustment screws.

Safety, Code Compliance, and When Not to Adjust Your Own Door Closer

Commercial door closer adjustment is not only about convenience. It directly affects fire safety, accessibility, and legal compliance. Fire-rated and corridor doors in public buildings, schools, and apartment buildings must close and latch reliably to contain smoke and fire. Improper adjustment, whether too slow, too weak, or with closing defeated entirely, can undermine that protection and create safety hazards.

Accessibility matters equally. Closing speed and opening resistance that are too high make doors difficult for people with limited mobility. Many jurisdictions reference ADA guidelines requiring that interior doors not exceed 5 pounds of opening force and that door swing from 90° open to 12° from closed takes at least 5 seconds. Proper installation ensures compliance with ADA and fire safety standards, and improper adjustments can lead to safety hazards and increased costs.

Local building and fire codes may also restrict hold-open functions on fire doors and specify closing speed ranges. Businesses should never intentionally defeat those features.

Stop and call a professional if you notice any of these warning signs: hydraulic oil leaks on the closer or floor, a cracked or dented closer body, a loose or twisted closer arm, the door rubbing on the door frame, or a door not closing even after reasonable adjustment. Inspect the door for issues like oil leaks or sagging that adjustment cannot fix. Get a Reno encourages property owners to document any significant changes, particularly on fire-rated or high traffic areas exits, so future inspections confirm code compliance. For critical doors like stairwells and primary exits, consider a professional service schedule rather than relying solely on in-house adjustments.

Tools and Preparation for Adjusting a Commercial Door Closer

Good preparation makes closer adjustment faster and prevents damage to the closer body, closer arm, or adjustment screws. Gather your tools before you start.

For most surface-mounted commercial door closers, you will need:

A flathead or Phillips screwdriver is needed for adjustments on most models. A hex key is required for some door closers with recessed valves. A small adjustable wrench may be necessary for adjustments to arm fasteners, and use a measuring tape to ensure proper door closer height and alignment.

Many modern closers use recessed hex-head screws hidden under a metal or plastic cover, while older models may use standard slotted screws labeled directly on the closer body. To remove the cover, check for visible screws, loosen them if present, then slide or carefully pull off tension-held covers while supporting them with one hand to avoid bending or cracking.

Once the cover is off, inspect the closer body: look for oil residue, loose mounting screws, a misaligned closer arm, or stripped screws before making adjustments. Prop the commercial door open temporarily if allowed by code, and clear the area so the door can swing fully during testing. Get a Reno recommends marking original screw positions with a felt-tip pen or snapping close-up photos so you can return the closer to its prior state if needed.

Identifying and Understanding Key Door Closer Adjustment Screws

Different closer brands use slightly different layouts, but most door closers share four primary adjustment functions controlled by labeled screws or valves. Adjustment screws are often labeled "S," "L," "B," and "D," and understanding each one is essential before making adjustments.

Here is what each marking controls:

• S (Sweep/Main): Controls the main closing speed from fully open to about 10–15 degrees before closing. This is your primary speed adjustment for the bulk of the door swing.

• L (Latch): Controls the final inches of closure to ensure the door latches securely. This governs the last 10–15° of travel where the latch must engage the strike plate.

• BC (Backcheck): Cushions the door opening motion to prevent damage from being thrown open. It kicks in around 70–75° and protects the door frame, wall, and the entire unit from impact.

• D (Delay): On some models, this allows the door to pause before beginning its closing cycle, providing delayed action for accessibility.

These labels are typically stamped into the metal near each screw, printed on a small diagram under the cover, or shown on a sticker indicating turning direction for increase and decrease.

Practical examples bring this to life: strong backcheck on an exterior commercial door that catches wind prevents wall damage; slower sweep speed in a quiet office hallway avoids disturbing workers; stronger latch speed on a door with weatherstripping ensures it overcomes resistance. Adjustment screws have limited safe travel, and forcing them beyond their stops can strip threads or damage internal seals, which is why Get a Reno stresses small, measured turns and frequent testing.

Not all automatic door closers or concealed floor closers expose the same valves. In some automatic door systems, control modules handle speed and delay electronically rather than through visible hydraulic valves. If labels are missing or unreadable due to paint or wear, clean the surface gently, compare to the original installation instructions, or consult the closer model documentation before guessing.

Step‑by‑Step: Adjusting Backcheck, Closing Speed, and Latching Speed

Follow a logical order for closer adjustment: backcheck first, then main closing speed, then latching speed. Each change builds on the previous one.

Baseline reset: Begin by closing all hydraulic valves by turning them clockwise until they stop, then open each about 1½ turns counterclockwise to increase flow to a reasonable starting point. Never completely remove an adjustment screw to avoid releasing hydraulic fluid.

Backcheck: If the door is slamming into a wall when opened forcefully, turn the "BC" screw about 1/4 turn clockwise to add resistance. Open the door to about 75–90° and feel the cushioning effect. Back-check adjustment prevents doors from swinging open too fast. Repeat in small adjustments until the door slows near full open without feeling stiff during normal door opening.

Sweep/closing speed: Adjust the swing speed by turning the "S" screw. The goal is a controlled sweep where the door takes about 5–8 seconds from fully open to just before latching. Make adjustments in 1/4 turn increments for safety, testing several full cycles between changes so the hydraulic fluid settles. This swing speed controls how the commercial door behaves through most of its travel.

Latching speed: Adjust the "L" screw so the final 10–15° has enough force to latch properly against air pressure and weatherstripping, but not so much that it creates slamming. Latching speed should be adjusted so the door closes in 7–8 seconds total. Latching speed adjustment ensures doors latch securely on every cycle. For interior doors in a quiet office, back off the latch speed slightly; for an exterior commercial door with weatherstripping, increase it.

Get a Reno recommends adjusting only one valve at a time, writing down each change, and having a second person stand on the latch side to listen for slams, bounce-back, or hesitation. By carefully turning each screw, you can fine-tune behavior without overcorrecting.

Consider this scenario: a property manager spends 10–15 minutes on a lobby door. She first tames backcheck so the wind no longer throws the door into the wall. Then she slows the sweep so the door closes correctly at a comfortable pace. Finally, she increases latch speed just enough that the door engages the strike plate every time, improving after-hours security. A door should fully close and latch in 7 to 8 seconds for reliable performance.

Fine‑Tuning Delayed Action, Closer Arm Position, and Automatic Door Closers

Some commercial door closers include optional features like delayed action and adjustable closer arms, and automatic door systems add another layer of controls beyond basic hydraulic valves.

The "D" valve allows a commercial door to remain open for several seconds before starting to close, which is helpful for people using mobility devices or moving carts through high traffic areas. Lengthen or shorten this delay with small clockwise or counterclockwise turns. On fire-rated doors and certain exits, long delays or hold-open features may be restricted by code, so Get a Reno recommends checking project documentation before increasing delay on these openings. A hard stop feature on some models limits how far the door can open.

A misaligned or loose closer arm can cause the door to stop short, rebound, or chatter. Check arm screws, verify the arm angle at the closed position, and re-seat the arm on the spline or shoe following the closer diagram. Whether your closer uses a parallel arm or standard arm mount, minor changes in arm geometry can improve how the door closes without relying solely on valve changes. If the arm is installed incorrectly, the door may never close smoothly regardless of valve settings. Check that everything is installed correctly before adjusting valves.

For low-energy automatic door closer systems, speed and hold-open time may be set via dials or digital menus rather than exposed valves. These systems usually require adherence to strict safety standards and may be better adjusted by qualified technicians. Get a Reno encourages building owners to keep manufacturer installation instructions on file for any automatic door closer and to log each change for later audits.

Troubleshooting Common Commercial Door Closer Problems

Not every door issue traces back to closer adjustment. This section helps you distinguish between closer-related problems and issues with hinges, the frame, or the door itself.

Symptoms pointing to adjustment issues:

• Door closes too fast and creates slamming

• Door closes too slow and does not latch

• Door bounces at the door frame on closing

• Door resists opening strongly only near full open (backcheck too strong)

Symptoms pointing to mechanical or installation problems:

• Door scraping on the floor or frame

• Visibly sagging hinges

• Closer body pulling away from the door or frame

• Arm hitting trim or ceiling tiles

To run a simple diagnostic, prop the door open and disconnect the closer arm from the shoe if safe. Swing the door by hand. If it binds without the closer, the issue is likely with hinges, frame alignment, or weatherstripping rather than the closer itself. Consider whether the door size has changed due to a new door installation or if the existing closer matches the opening.

Signs the closer itself is failing include: if you find oil leaking from end caps or valves, grinding or groaning noises during operation, adjustment screws that no longer affect speed, or a spring that cannot close the door even at maximum spring tension. Oil leaks indicate worn seals in hydraulic door closers, and if a closer is leaking oil, it typically needs replacement rather than adjustment. When the entire unit stops responding to changes, it may require replacement.

Get a Reno suggests that if two or three small adjustment rounds do not resolve the problem, or if oil is visible anywhere, replacement is usually the best solution. Keep a simple log: note the date, observed issue, adjustments made, and final result. This helps identify seasonal patterns from temperature or wind rather than treating each complaint in isolation. Door closers require regular maintenance for long-lasting performance.

Maintenance, Replacement Decisions, and How Get a Reno Can Help

Well-adjusted commercial door closers protect people, property, and daily operations, but they need periodic checks as buildings and usage patterns change.

Simple maintenance routine:

• Quarterly visual inspection for oil leaks and loose screws

• Test each commercial door by opening and closing it several times

• Verify closing speed and latching behavior

• Clean dust or debris from the closer body and closer arm

Consider replacement rather than continued adjustment when you see any sign of hydraulic fluid leakage, stripped or seized adjustment screws, doors that still will not automatically close and latch after careful tuning, or closers visibly under-sized for a heavier new door. Upgrading older units to modern commercial door closers can improve reliability, reduce noise, and support energy efficiency and code compliance, especially when traffic volume or door size has changed since the original installation.

Industry maintenance data suggests annual service runs about $25–$75 per closer, while emergency replacement of a failed unit can reach $400–$1,200 including labor and downtime. With proper care, a commercial closer lasts 15–20 years; without it, failure can appear within 3–5 years.

Get a Reno focuses on giving building owners clear expectations: what can realistically be fixed with a closer adjustment, when professional help is warranted, and how to budget for phased replacement of aging closers across a property. Whether it is a minor tweak to closing speed or planning a full replacement, Get a Reno aims to make the decision straightforward, documented, and aligned with safety and code requirements. Add door closer checks to your broader facility maintenance checklist so issues are caught before they lead to complaints, damage, or failed inspections.
